SP DRIVER 50 DRIVER WITHOUT HORN 400W RMS (UNIT PRICE)
Pay in easy, interest-free installments with Klarna.
SUPER POWER AUDIODESIGNED IN ITALY
MMXXVI
400 watt RMS.
The driver alone.
A compression driver sold without the horn: 112 dB sensitivity, a 51.6 mm / 2" voice coil and 400 W RMS on a 25 mm (1") throat. Usable range 600 Hz – 20 kHz. Sold as a single unit, horn not included.
Power, measured not promised
PER DRIVER · RMS IS CONTINUOUS POWER, NOT BURST · NOMINAL 4 Ω
Why this driver
Sensitivity is what makes a horn system loud. At 112 dB this driver sits above the midrange without asking for huge power.
The coil measures 51.6 mm / 2" and is wound in CCAW (aluminium). That is the part that turns 400 W RMS into pressure and then has to survive it.
The throat is a standard 25 mm (1"). You choose the horn: flare, dispersion and look are your decision, not ours.
Rated from 600 Hz to 20 kHz on a 34 oz magnet assembly. A wide usable band for a front stage or an SPL wall.
Look at it closely
Full specifications and mounting data, straight from the factory sheet.
⇩ Open the manual (PDF)English · 2026 · opens in a new tab
What you receive

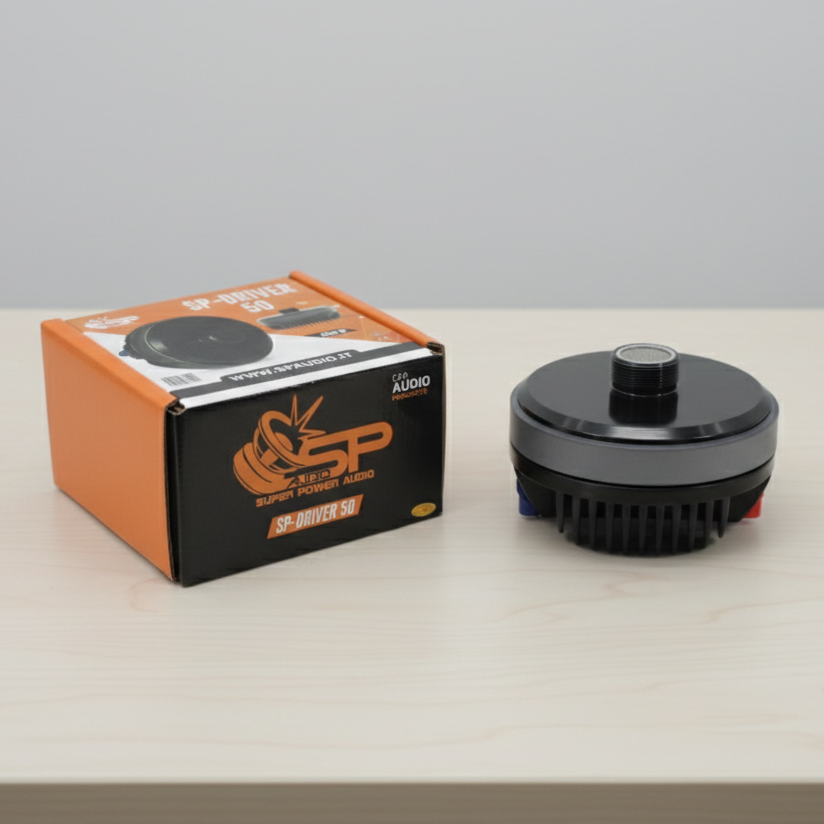

The price on this page is for one piece: the compression driver alone, with its 25 mm (1") threaded throat. Packed in the SP Audio box.
In the box: 1 × SP DRIVER 50 compression driver · SP Audio packaging.
Not included: the horn — this driver is sold without it — plus crossovers, capacitors, speaker cable and brackets, chosen for your car.
Technical specifications
| POWER & LOAD | |
|---|---|
| Rated power (RMS) | 400 W |
| Peak power (MAX) | 800 W |
| Minimum impedance | 4 ohm |
| ACOUSTIC | |
| Sensitivity | 112 dB |
| Frequency range | 600 Hz – 20 kHz |
| Throat diameter | 25 mm (1") |
| MOTOR & MATERIALS | |
| Voice coil diameter | 51.6 mm / 2" |
| Winding material | CCAW (aluminium) |
| Magnet | 34 oz |
| DIMENSIONS & PACKAGING | |
| Overall diameter | 134 mm (5.2") |
| Depth | 82 mm (3.2") |
| Net weight | 3 kg |
| Shipping weight (1 pc) | 3.5 kg |
| Shipping box (1 pc) | 14.5 × 14.5 × 9.5 cm |
| Sold as | Single unit · horn not included |
MANUFACTURER’S LABORATORY DATA · PEAK OR “BURST” FIGURES USED IN SOME MARKETS ARE NOT RMS AND ARE NOT LISTED
Complete the system
Before you install it
- It always needs a crossover. Never full range. A compression driver wired straight to the amplifier does not survive. Use a crossover, or at the very least a capacitor in series.
- Do not cross below 600 Hz. 600 Hz is the lowest frequency this driver is rated for. Going under it, at any power, is the fastest way to tear the diaphragm.
- Do not go below 4 ohm per channel. 4 ohm is the minimum load. Two drivers in parallel on one channel give 2 ohm: most amplifiers will heat up or go into protection.
- Add a horn before you play it. This driver ships without one. Mount it on a 25 mm (1") horn, aim it at the listener, then bring the gain up slowly. Clipping kills compression drivers far more often than power does.
Questions installers ask
